AIR CUP LIFT SYSTEM

A perfect combination of air ride and coilovers. With air cup suspension, you keep the ride quality and performance of your coilovers and have the ability to raise your car with the push of a button. A great system for show, track, drift, or daily-driven cars.

HOW DOES IT WORK?

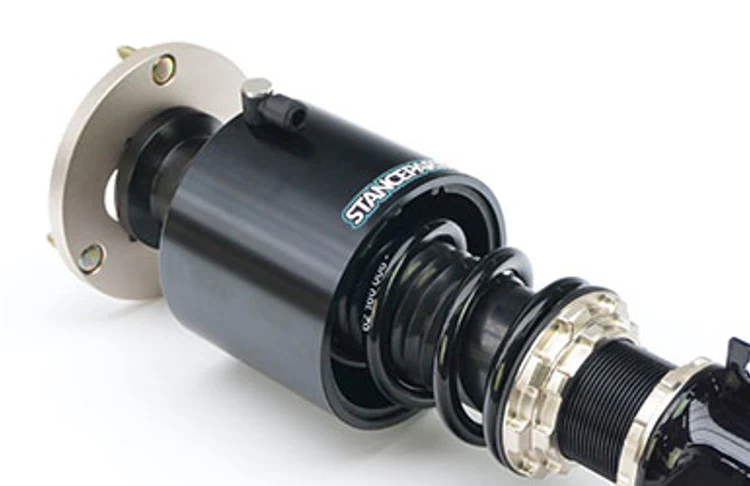

It is an air cylinder on top of your coilover. Normally, you will drive low, without the cups pressurized. Whenever you need to pass an obstacle, such as a speed bump or a driveway, you can apply pressure to the cups and it will raise your car by 50mm.

UNIVERSAL

The air cup lift system will fit on 90% of any brand of coilovers. Though your coilover must meet a certain dimensional requirement, otherwise, the system will not fit.

Instant lift with 2-gallon tank!

This kit includes everything you need to install the air cup lift system:

• 2 air cups

• 150psi compressor setup with 2-gallon tank

• Wiring harness

• 3-way valve

• Pre-wired 16mm LED switch

• 12-meter airline

• T-splitter

2-year warranty on the air cups.
1-year warranty on the compressor setup.

Make sure you have enough clearance around the coilovers, the air cups are 120mm in diameter, and the fitting is 17mm. (110mm air cups are available on request)

For a guide on how to measure for the Stanceparts cup sizes required, & Installation,
Click Here for STANCEPARTS FITMENT REQUIREMENTS

Shaft diameter:

• 12.5mm
• 14mm
• 15mm
• 16mm
• 18mm
• 20mm
• 22mm
• 40mm
• 44mm
• 44.5mm
• 45mm
• 50mm Custom
• 53mm Custom

For assistance when ordering email us at [email protected]
